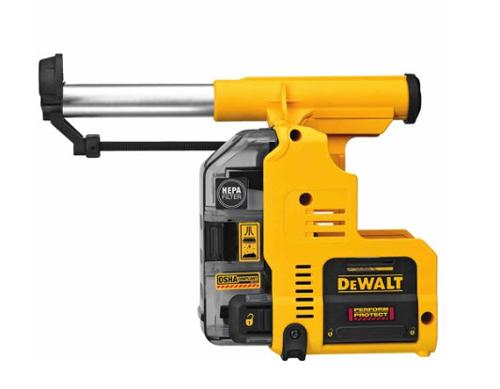

This OSHA Table 1-compliant Dust Extractor works with the DCH273 1 in. Hammer. It features an OSHA 1926.1153-compliant Dust Box Assembly. With a filter cleaning mechanism and a HEPA filter, it removes 99.97% of airborne particles 0.3 microns or greater. The Dust Extractor has a powerful built-in motor for increased suction during high-performance drilling. The 2-second power-off delay ensures that dust extraction continues after the drill is switched off. It accommodates drill bit diameters up to 5/8" which allows users to drill overhead for 1/2" drop-ins.
Features
- Table 1-compliant dust management solution for 1" SDS Plus rotary hammers
- 2-Second power off delay ensures dust extraction to continue after the drill is switched off
- Clear, durable dust box ensures users can see when dust box needs to be emptied
- Built-in motor increases suction and high tool performance
- Replaceable dust nozzle to quickly change to new nozzle
- Drill up to 5/8" diameter, 4" useable length, 6" overall length bits
- Fits into tight spaces on scissor lifts and between overhead pipes and ductwork
- Easily adjustable depth gauge for accurate anchor drilling
- Replaces D25303DH
Includes
- (1) DWH303DH Extractor
- (1) DWH302DH Dust Box
- (1) Side Handle
