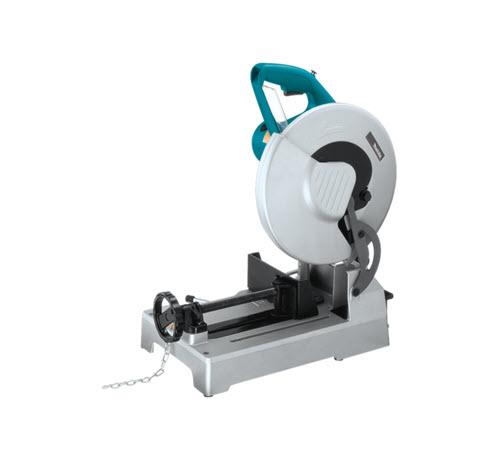

12 in Makita Metal Cutting Saw

Makita’s 12-Inch Metal Cutting Saw (model LC1230) delivers power and ease-of-use features for a range of industrial metal-cutting applications. It is ideal for cutting in pipe, angle iron, conduit, and more.

The LC1230 is powered by a Makita-built 15 amp motor that delivers 1,700 rpm for improved performance. The quick release "tool-less" guide plate adjusts from 0 degrees to 45 degrees for quick and easy miter cutting. Cutting capacities range from 4-1/2 inches at 90 degrees to 3-1/2 inches at 45 degrees.

Ease of use features include a quick release vise for secure material retention and fast repeated cut-offs, a socket wrench that stores on the base for convenient blade changes, and a shavings collection tray for easy waste disposal and a cleaner work environment. The LC1230 has a D-shaped handle with a 2-finger trigger and a lock-off button engineered to prevent accidental start-ups. The saw includes a carbide-tipped blade that lasts 50X longer than abrasive wheels and is engineered to cut clean, accurate and virtually burr-free.

Features

• Carbide-tipped blade lasts 50x longer than abrasive wheels; cuts clean, accurate and virtually burr-free
• Quick release vise for secure material retention and fast, repeated cut-offs
• Lock-off button for user convenience
• Quick release support fence adjusts 0-45° for miter cutting
• Shaft lock for easy blade changes with just one wrench
• Powerful 15.0 AMP motor for the most demanding applications
• 4x Faster cutting in light pipe, angle iron, tubing, conduit and channel than abrasive cut-off saws
• D-shape handle for user comfort
• Socket wrench stores on base for convenient blade changes
• Shavings collection tray for easy waste disposal and a cleaner work environment
• Large cast aluminum base for stability
• Externally accessible brushes for greater serviceability
• Maximum cutting depth of 4-1/2" with carbide tipped blade

Specifications

• AMPS: 15
• Blade Diameter: 12"
• No Load Speed: 1,700 RPM
• Max. Cutting Capacity (at 90°): 4-1/2"
• Max. Cutting Capacity (at 45°): 3-1/2"
• Arbor: 1"
• No Tool Blade Change: No
• Overall Length: 20-1/4"
• Net Weight: 42.5 lbs.
• Max. Cutting Capacity at 90° (aluminum): 4-1/2"
• Max. Cutting Capacity at 90° (mild steel): 4-1/2"
• Power Type: Corded
• Power Tool Product Type: Corded

Includes

• (1) 12" (60T) Carbide-Tipped Metal Cutting Blade Metal (A-90532)

• (1) Socket Wrench (782210-8)

• (1) Safety Goggles (191686-2)
